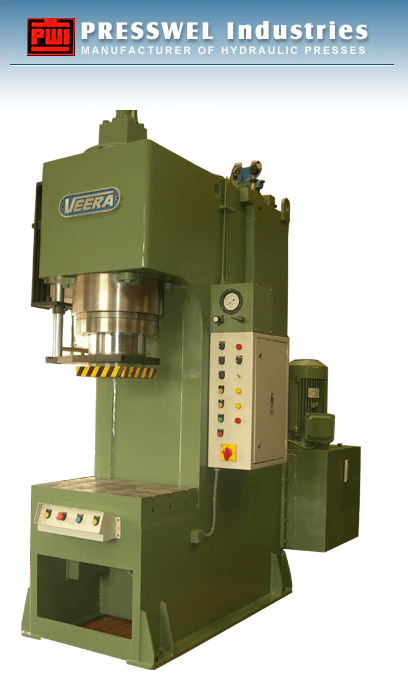

CT-series presses retain the tough, extra-heavy steel weldment frames of proven design. The result: less frame deflection, longer tool life, better parts and less operator fatigue. Drive motors and oil tanks are now housed entirely outside the press frame. Not only does this makes the maintenance easy, but provides good cooling to the power pack for better performance.

Today's manufacturing demands flexibility. The CT-series recognizes the need for quick changeover from one job to another. A wide selection of equipment is available to handle simplest hand loading assembly jobs to the most complex automated manufacturing unit, you can select the just right option that fits your needs.

What ever your special requirements, experienced Presswel personnel are willing to assist in any way thay can.

Presswel stands behind every press we make-with apare part, engineering know-how and dedicated service. From its sturdy frame to its Versatile controls, the CT series is a dependable machine.

The bed and cylinder mounting surface are machined parallel for perfect die alignment. Each frame is engineered for its rated power with ample reserve strength. Frame deflection is minimized for long die life. Deep ribbing under the bottom table froms a stable mounting surface for tools.

Our press cylinders have a large reserve capacity, the rams are of large diameter and of alloy steel, harden, ground and hard chrome plated to resist scoring or pitting. This helps to minimize leakage and increases the life of multilip seals.

Fastened to the ram and guide posts ensures parallel matting to the die and tools under operation, Ram travel is precisely square. to the table. Large sized accept big die sets. T-slots of suitable size provide secure mounting option.

Fastened to the flat bed, it's easily removable. T-slotes of ample size secure die perfectly. Thread hold and or cut outs are available.

Accomodates large dies, generous long stroke lengths are easily adjustable. Special daylight and strokes (large or smaller) are available.

Dual pump system provides a verstile match. the high quality, low pressure hydraulic system is designed for extra long life. Presses with speeds or extra high speeds are available for specific applications. Only standard manifold ensure compact design, less space, neat look, leak free operation and easily accebility for the components.

Designed for fast response and easy adjustment. All the presses have two push buttom control for operator's safety with option on the control panel for inch operation for die seting and trials.

DISTANCE REVERSAL SWITCH to set depth of ram stroke for automatic return up.

PRESSURE REVERSAL SWITCH to set pressure at which ram return up automatically.

CUSTOM FRAMES Extra day-light available, extra throat depth, U-shaped slots in table, special shapes and over size tables

DWELL TIMER to set speciifc timed dwell on work with ram reverse at end of timed period.

HEAT EXCHANGER. A seprate motor and pump for continuous cooling and filtration.

PRE-SHOW DOWN CIRCUTS to set point in ram stroke above work at which ram speed Changes from rapid advance to pressing speed.

DIE CUSHION EJECTOR for deep drawing and stripping of pressed components.
